CO2 80W OREE Laser Engraving-Cutting Machine 500x600

Product code: 10-0234

Weight: 150 Kg
Measurement: τμχ

€ 5.300,00 € 4.800,00

VAT is not included (24%)

In stock (25-50 days)
Show shipping cost estimation

Description

100W OREE CO2 Laser Engraving-Cutting Machine 600x1000

Prescribed from CNC CAT

Technical Specification

Laser power

80W

Laser type

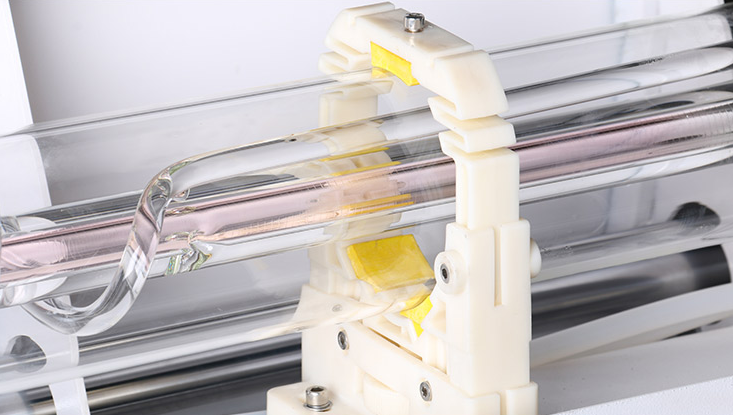

Hermetic CO2 glass tube

Voltage

220V

Driver Type

Micro Stepping Motor

Working Area

600mm x 100mm
200mm Up-Down electronic platform

Moving Speed

0-60000mm/min

Locating accuracy

<0.01mm

Min. shaping character

Character: 2x2mm, Letter: 1x1mm

Operating temperature

5℃-40℃

Resolution ratio

4000dpi

Cooling way

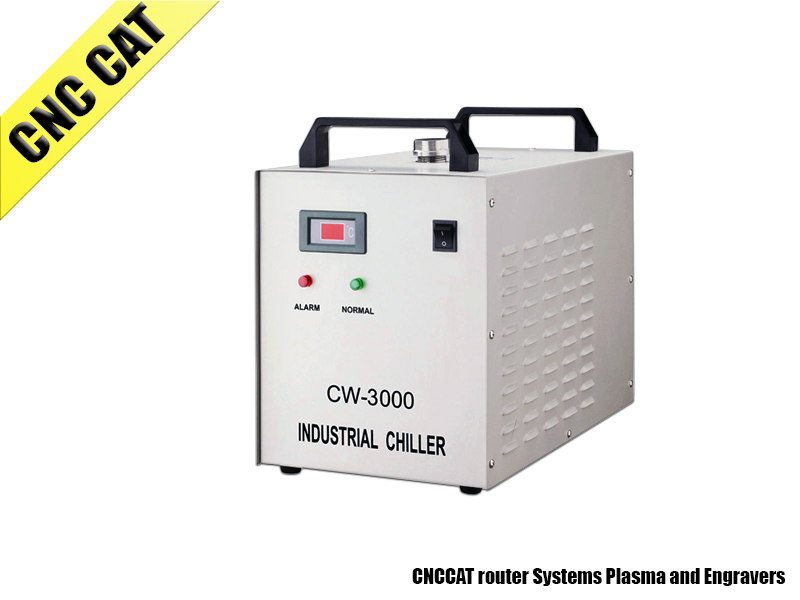

Water Cooling and protection system with chiller

Air Assist

Air Assist. Removes heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.

Compatible software

Graphic Format Supported: The Files which CorelDraw, Photoshop, AutoCAD can identify

(BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DMG, DXF, PAT, CDT, CLK, DEX, CSL, CMX, AI, WPG, WMF, EMF, CGM, SVG, SVGZ, PCT, FMV, GEM, CMX)

Cutting thickness

0-5mm (depends on different materials)

Color separation

Separation of cutting up to 256 colors

Sloping engraving

Slope can be designed discretionarily

Conveniences

●DSP Control Configuration

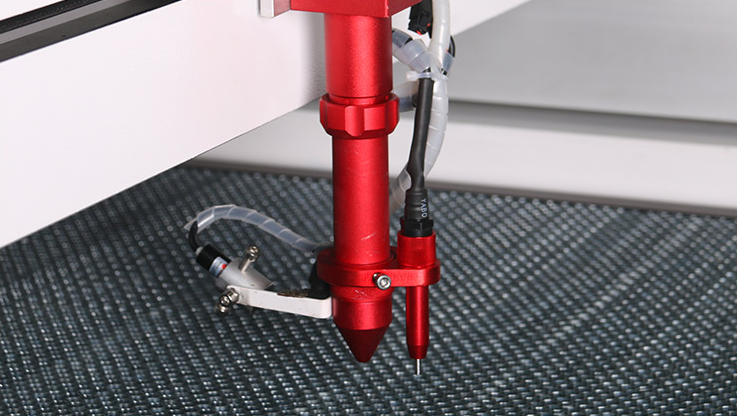

●The machine has an auto-focusing device, which can be calibrated by the software and find automatically the focus for cutting.

●Cuts off the water supply the protection: Yes

●Red Dot Pointer. Provides a visible means of determing engraving location.

●Raster/Vector Color Mapping. Change your engraving speeds and power by using color settings.

●Adjustable Speed and Power. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.

●Up-Down Platform.

●Wifi Wireless Control.

SPEED AND THICK CUTTING MATERIALS WITH LASER CO2 Speeds in mm/sec
MATERIAL	THICKNESS	40W	60W	80W	100W	130W	150W	300W
MDF	3mm	7-9	12-15	15-20	18-25	20-30	25-35	45-65
	6mm	3,5-5	8-10	10-13	13-15	15-18	18-21	30-55
	9mm	x	2-3	3,5-5	5-7	6,5-9	9-12	25-45
	15mm	x	x	x	1,5-2,5	3-4	5,5-7	20-32
	18mm	x	x	x	x	x	3-4	15-25
	20mm	x	x	x	x	x	x	6-10
ACRYLIC	3mm	10-15	15-20	20-25	25-30	30-35	35-40	50-60
	5mm	5-8	7-10	8-12	10-15	12-17	15-21	30-35
	8mm	x	1-3	5-9	6-10	8-12	10-15	25-30
	10mm	x	1-2	3-6	4-7	5-8	7-11	15-20
	15mm	x	x	1,5-3	2-4	3-5	4-7	12-15
	20mm	x	x	0,5-1,5	0,7-2	1-3	1,5-4	4-8
	25mm	x	x	0,2-0,5	0,3-0,7	0,4-1	0,8-1,5	2-4
	30mm	x	x	x	0,3	0,3-0,5	0,5-0,8	1-3
PLYWOOD	3mm	5-15	18-20	25-28	30-35	40-45	50-55	60-80
	5mm	2-5	12-15	22-25	25-28	30-35	35-40	45-55
	9mm	x	5-8	10-15	12-18	20-25	25-28	25-40
	12mm	x	x	x	x	8-12	12-18	22-35
	15mm	x	x	x	x	3-4	4,5-6	20-32
	18mm	x	x	x	x	1,2-2	2,5-4	15-25
	20mm	x	x	x	x	x	1,8-2,5	6-10
